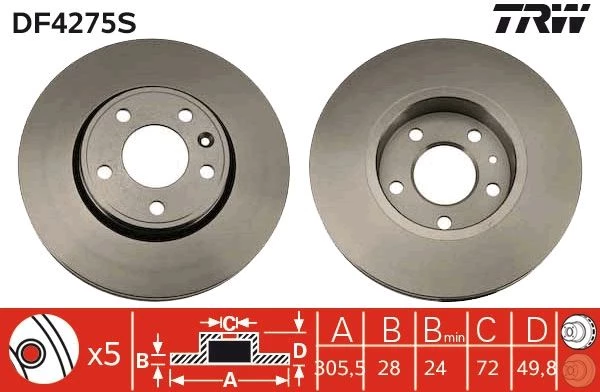

    Product number: DF4275S | EAN: 3322937390410
    Properties
    Alles weergeven
    Thread size 15,6
    Height (mm) 49.7
    Outer diameter (mm) 306
    Brake disc type vented
    Brake disc thickness (mm) 28
    Num. of holes 5
    Colour black
    Bolt hole circle Ø (mm) 118
    Min. thickness (mm) 24
    Surface painted
    Appr. stamp e190r-02c0185/0553
    Centering diameter (mm) 72
    Machining high-carbon
    Svhc no information available, please contact the manufacturer!

    Brake Disc

    AED 228,90 Price incl. vat. 5%

    Your last viewed products (28)
    Applicability / OE numbers
    Manufacturer Model Version Engine code Construction type Construction start Construction end Pk Power kw
    NISSAN NISSAN
    OPEL OPEL
    RENAULT RENAULT
    Manufacturer Productnumber
    OPEL 44 13 734 , 4413734
    OPEL 4408275
    OPEL 4414632
    OPEL 91159915
    OPEL 91165426
    OPEL 93161253
    NISSAN 130C100QAD
    NISSAN 40206-00QAE , 4020600QAE
    NISSAN 40206-00QAF , 4020600QAF
    NISSAN 40206-00QAG , 4020600QAG
    NISSAN 77012-06845 , 7701206845
    NISSAN 82000-10519 , 8200010519
    VAUXHALL 44 13 734 , 4413734
    VAUXHALL 91159915
    VAUXHALL 91165426
    VAUXHALL 93161253
    RENAULT 77 01 206 845 , 7701206845
    RENAULT 77 11 130 077 , 7711130077
    RENAULT 82 00 227 715 , 8200227715
    Usage numbers

    A brake disc (also called a brake rotor) is a key component of the disc braking system. It rotates with the wheel and is clamped by the brake pads through the brake caliper when the brake pedal is pressed. The resulting friction converts kinetic energy into heat, slowing down or stopping the vehicle efficiently. High-quality discs ensure stable braking, heat dissipation, and long-lasting performance.


    There are several types, each designed for specific driving conditions:

    • Solid Discs: Standard design, used in front or rear of smaller vehicles.

    • Vented Discs: Feature internal cooling channels for better heat dissipation.

    • Drilled or Slotted Discs: Provide improved cooling, cleaning, and wet-weather performance (ideal for performance or heavy-duty use).
      Always match the type to your vehicle’s original specifications.


    Common symptoms include:

    • Vibration or pulsation in the brake pedal or steering wheel when braking

    • Squealing or grinding noise

    • Blue discoloration or scoring marks on the disc surface

    • Reduced braking efficiency or longer stopping distance

    • Uneven pad wear or grooved surface
      If any signs appear, have your discs inspected and measured — replacement is usually required if disc thickness is below the minimum limit.


    To ensure compatibility, confirm the following details:

    • OEM or Part Number

    • Vehicle make, model, year, and engine size

    • Axle position (front or rear)

    • Disc dimensions (diameter, thickness, height, center bore)

    • Type: solid, vented, drilled, or slotted
      If you’re unsure, share your VIN or chassis number with us — our team will verify the correct fitment.


    Yes, it’s highly recommended to replace brake pads along with brake discs. Old pads can cause uneven wear or reduced friction on new discs. Replacing both ensures optimal braking performance, smooth bedding-in, and longer component lifespan. Always perform proper run-in (bedding) procedure after installation.


    Yes. Our brake discs are manufactured to OEM standards using high-carbon or cast-iron materials for maximum strength and thermal stability. Each disc undergoes balancing, hardness, and runout testing to ensure vibration-free and consistent braking. All discs come with a manufacturer’s warranty and are suitable for professional workshop installation.


    Alternative products (9)
    EAN code 4027816226987
    Productnumber 22698

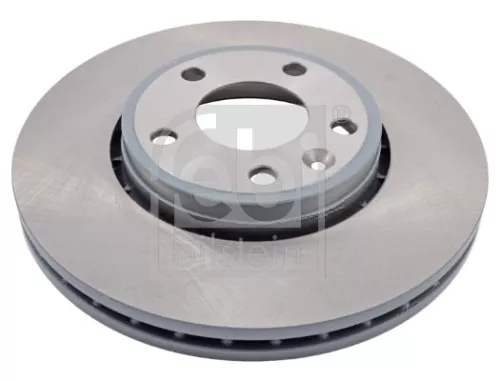

    Brand FEBI BILSTEIN
    Price incl. vat.AED 134,40
    EAN code 5907558556100
    Productnumber 19-1009
    Brand MAXGEAR
    Price incl. vat.AED 135,45
    EAN code 4047025357555
    Productnumber 0986479B69

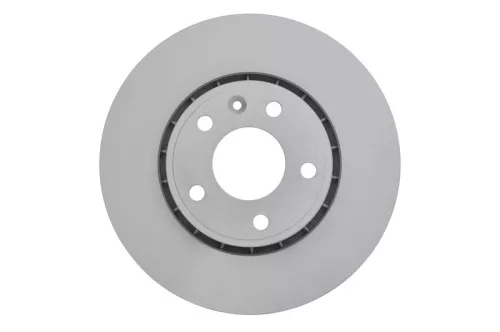

    Brand BOSCH
    Price incl. vat.AED 243,60
    EAN code 4010858589080
    Productnumber CT1184K1
    Brand CONTINENTAL CTAM
    Price incl. vat.AED 271,95
    EAN code 5901619567609
    Productnumber 19-1009MAX
    Brand MAXGEAR
    Price incl. vat.AED 183,75
    EAN code 4006633105965

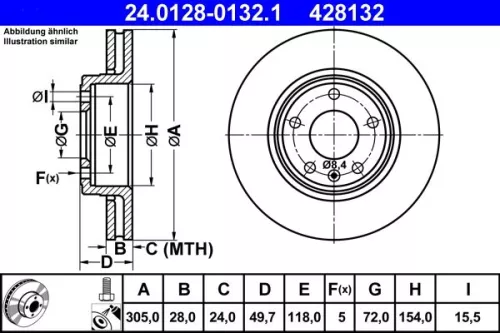

    Productnumber 24.0128-0132.1
